Drilling - Angle  Drills

KAT113 - 90° Angle Drill Motor
High quality designed for professional use. Features include rear exhaust, a milled motor housing, steel alloy cylinder and rotor for long tool life. Precision machined for smooth and quiet operations.

The 90° attachment accepts all ¼” x 28 threaded drill bits and cutters. Designed to fit into difficult areas, the angle head height is 1.06” and 0.319” side to center. Lightweight 1.90 lbs. Overall length is 10-11/16”.

Model # Style RPM Length
Inches
Weight
lbs
Price
KAT113 90° 3000 10 11/16 1.90 315.00


KAT114 - 45° Angle Drill Motor
High quality designed for professional use. Features include rear exhaust, a milled motor housing, steel alloy cylinder, and rotor for long tool life. Precision machined for smooth and quiet operations.

The 45° attachment accepts all ¼” x 28 threaded drill bits and cutters. Designed to fit into difficult areas. Lightweight 1.90 lbs. Overall length is 10-29/32”.

Model # Style RPM Length
Inches
Weight
lbs
Price
KAT114 45° 3000 10 29/32 1.90 340.00

KAT115 - 360° Swivel Angle Drill Motor
High quality designed for professional use. Features include rear exhaust, a milled motor housing, steel alloy cylinder, and rotor for long tool life. Precision machined for smooth and quiet operations.

The 90° x 90° angle head attachment swivels 360° that is easily maneuvered allowing one to drill into areas otherwise inaccessible. Accepts all ¼” x 28 threaded drill bits and cutters. Designed to fit into difficult areas, the angle head height is 1.06” and 0.319” side to center. Lightweight 1.90 lbs. Overall length is 10-11/16”.

Model # Style RPM Length
Inches
Weight
lbs
Price
KAT115 360° 3000 10 5/8 2 425.00

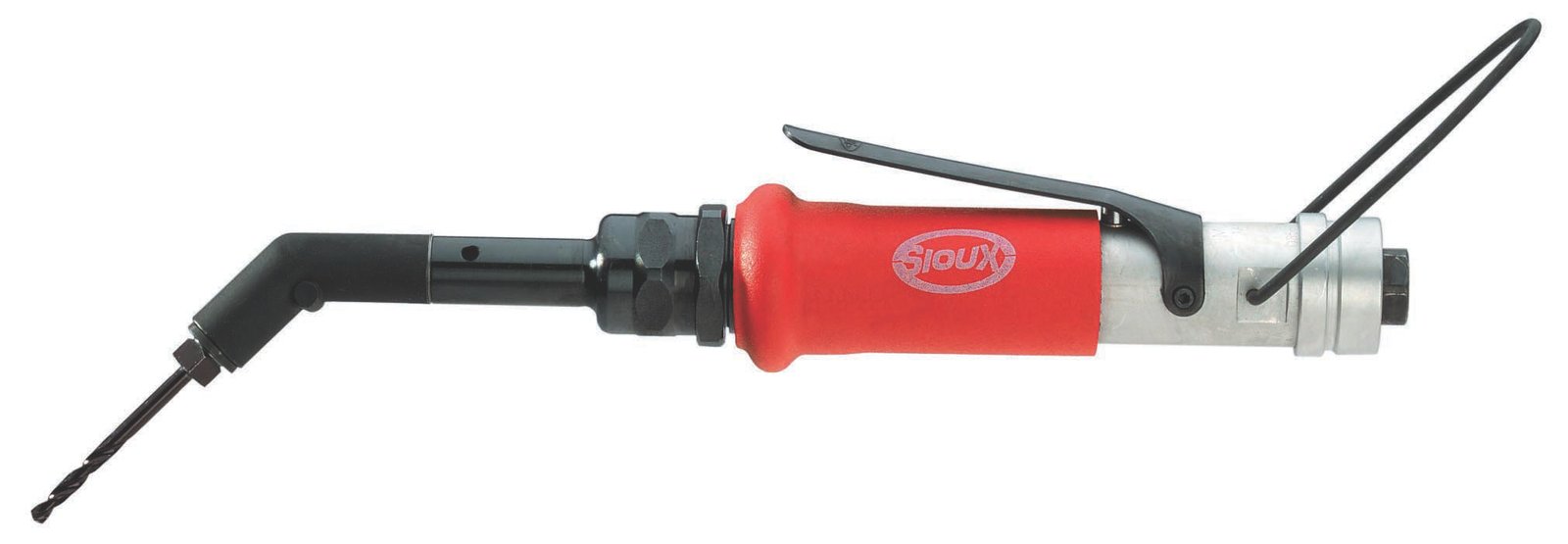

Sioux® Tools 90° & 45° Mini Angle Drill Motor
Sioux Tools pneumatic drills are known world wide for their exceptional engineering and construction. Small, light weight and very powerful. These .33 hp drills runs up to 2800 rpm and weighs just 1.5 lbs. Just 9.7" OAL. Available in both 90° and 45°. Units will accept all 1/4" x 28 threaded drill bits and accessories.
Model # Style RPM Length
Inches
Weight
lbs
Price
1AM1551B 90° 2800 9.7 1.5 639.00
1AM1541 45° 2800 10.2 1.5 620.00
1AM1552B 90° 2200 9.7 1.5 685.00
1AM1441 45° 2200 10.2 1.5 673.00




Disclaimer - Prices are subject to change without notice.
