Kraftformers
|
|
|
 |
|
| Eckold KF675
Kraftformer |
The new generation of Kraftformer
helps you to produce exact results. This is achieved by
a motor driven adjustable stroke position with a
repeat accuracy from 0.1 mm. Tool query and electronic
mistake diagnosis, as well as indicated maintenance
intervals protect an optimum machine usage.
* New modern design
* Free choice of stroke speed
* Adjustable reverse position
* 25 Storable processing programs
* Monitoring of tools
* Electronic fault tracing
* Repeatable results realized by
processing programs |
|
 |
|
 |
| KF675 |
26.5" x 18" |
0.315 |
150 - 600 |
6.0 mm |
6.0 mm |
4.0 mm |
4,630 |
|
|
| Please call for
pricing and availability. (734) 947-8100 |
|
| |
|
Eckold KF470 Kraftformer |
|
|
The new generation of Kraftformer is characterized by a
modern comtemporary design. The electronic display
of the control system visualizes operations, fault
tracing and indicated maintenance rates which ensure an
optimum machine utilization. Storable processing
programs allow repeatable results.
| |
|
KF470 |
18" x 18 1/2" |
4.0 mm |
3.0 mm |
2.0 mm |
2,866 lbs |
|
|
|

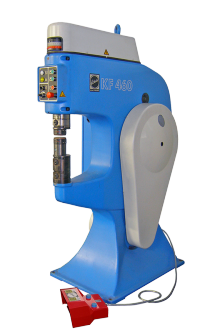

KF460 |
| Please call for
pricing and availability. (734) 947-8100 |
|
|
| |
|
|
| |
KF324
|
The KF324 is driven by an electric
motor at 400 strokes per minute. (Specify voltage when
ordering). The KF324 has a hand wheel for the jaw
pressure adjustment. The jaws can be replaced in a
matter of seconds so that you can quickly change from
task to task. Mounted on heavy duty casters which allow
you to move the unit around the shop or out of the way
when not in use. These units are extremely popular in
auto restoration and fabrication shops, as well as
throughout the aviation industry.
The KF340 Kraftformer has an
adjustable operating speed from 250 to 550 strokes per
minute. The lower speeds are ideal for shrinking and
straightening, while the higher speeds are best suited
for stretching, doming and planishing. This unit has
ample power to work steel up to .118" and aluminum to
.157" thicknesses. The foot pedal adjusts the jaw
pressure and also has an emergency stop function. As
with all Eckold machines, the new KF340 has a quick
change jaw feature and accepts all the jaws and
accessories used with the KF324 machine.
|
KF340
|
|
KF324 |
14" x 9 1/2" |
0.098 |
0.078 |
0.059 |
1,125 |
|
KF340 |
14" x 9 1/2" |
0.157 |
0.118 |
0.079 |
1,335 |
|
| Please call for pricing
and availability. (734) 947-8100 |
|
|
| |
|
Eckold KF800 Kraftformer |
|
|
This ECKOLD innovation with a horizontal reach
of a unique 800 mm offers new possibilities for
shaping very large sheet metal parts. The
machine is air driven and released by a foot
pedal, either in single or continuous stroke
mode. The single stroke function combined with
the big reach is especially useful for
correction jobs. Depending on the need of
forming force, the machine has two stroke
settings. A digital display shows the ram
position with a 0.1 mm precision which results
in a high repeatability of the forming force.
The machine is adjustable in height, allowing
the operator an ergonomic working position. In
this machines the well known ECKOLD forming
tools with the âKâ adapter system are used. This
allows tool changes within seconds. The
tool range covers
shrinking, stretching (steel and no-mar
inserts), doming and planishing. As for all
machines of ECKOLD, this machine incorporates
robustness, durability, versatility and clever
details.
|
|
 |
|
|
|
| KF800 |
|
2.0 mm |
2.0 mm |
1.5 mm |
|
|
|
|
|
|
|
 |
| Please call for pricing
and availability. (734) 947-8100 |
|
| |
|
| |
 |
The KF170PDK is the smallest in
the Kraftformer program. Unlike the larger models, this
machine is air opperated and equipped with both continuous and single
stroke operation. Extraordinary precise pre-selection
and control of pressure make this Kraftformer ideal for
correcting and adjusting work. The single stroke
function allows for punching, notching, and clinching
tooling. The KF170PDK comes equipped with FWA405K
shrinking and FWR407K stretching jaws.
The KF170PDK-BM is a Bench Mount version of the KF170PDK.
|
 |
|
|
|
|
|
KF170PDK |
7" x 4" |
0.098 |
0.078 |
0.059 |
400 lbs |
|
KF170PDK-BM |
7" x 4" |
0.098 |
0.078 |
0.059 |
205 |
|
| Please call for pricing
and availability. (734) 947-8100 |
|
| |
|
|
|
|
|
 |
|
