The Eckold HF100 series Handformer
is a stationary machine with a manual drive that
replaces laborious hammer work when forming metal. It is
suitable for shrinking and stretching metal sheets and
profiles up to a thickness of 1.5 mm (16 gauge). The
single stroke of the Handformer makes it possible to
operate tools for notching, punching and edging. The
HF100K includes one set of FWA405SSP Shrinking and
FWR407SSP Stretching Jaws. The HF100PA100 is equipped
with a pneumatic drive and foot pedal which allows for
hands free operation.
Model #
Reach x Gap
Aluminum
Capacity
Steel
Capacity
Stainless
Capacity
Shipping
Weight
lbs
HF100
4" x 2 1/4"
0.078
0.059
0.039
69
HF100K
4" x 2 1/4"
0.078
0.059
0.039
76
HF100PA100
4" x 2 1/4"
0.078
0.059
0.039
105
PA100
Power Drive Unit Includes Foot Control
39
Please call for
pricing and availability. (734) 947-8100
Eckold Handformer Tooling
Eckold forming tools can deal with different shapes and
materials qualities. The desired result is reached
step-by-step with each stroke equaling one step. Forward
feed and pressure are applied to control the forming.
Eckold machinery is precise and produces minimum of
noise. All wear and tear parts of the tooling can be
replaced individually.
Shrinking
Model #
Size
Capacity
Machine
FWA405SSP
40
mm
Handformers

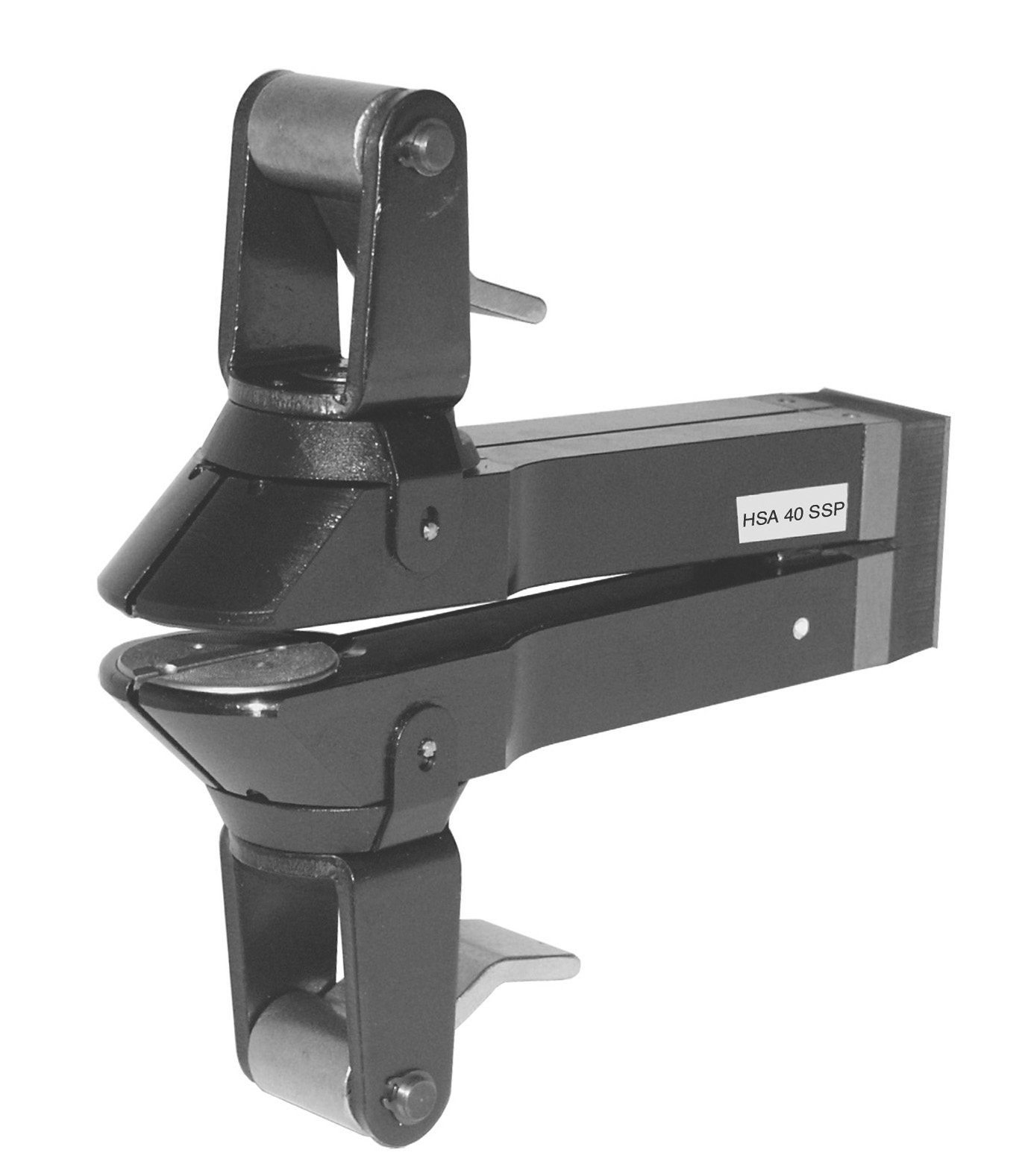

HSA40SSP
Beaked
Handformers
HLFA70SSP No Mar
40
x 70
Handformers
HLA60SSP No Mar
Beaked
Handformers
Stretching
Model #
Size
Capacity
Machine
FWR407SSP
40
mm
Handformers
HSR60SSP
Beaked
Handformers
HLFR70SSP No Mar
40
x 70
Handformers
HLR60SSP No Mar
Beaked
Handformers
Specialty
Model #
Size
Capacity
Machine
LSW1SSP
Punch
Handformers
AK250
Edging
Handformers
DFW1SSP
Clinching
Handformers
ASW42SSP
Notching
Handformers
Please call for
pricing and availability. (734) 947-8100
Eckold HZ52 Hand Plier
The Eckold hand pliers HZ52 are specially designed for
making adjustments and corrections at the worksite by
stretching and even shrinking. They can handle
sheet metal and profiles up to .039" thickness or
aluminium up to .059" thickness. HZ52 hand pliers
are used for correcting or adjusting metal profiles and
sheet flanges by shrinking or stretching.
Model #
Aluminum
Capacity
Steel
Capacity
Stainless
Capacity
Weight
HZ52
0.078
0.059
0.039
8.37lbs
Throat Vertical
Total Length
Clinching Variants
2.75"
27
S-DF 4
Jaws
Model #
Type
Function
FWA405 (STD)
40 mm
Shrinking
FWR407 (STD)
40 mm
Stretching
HLFA70
No Mar
Shrinking
HLFR70
No Mar
Stretching
Clinching
Call For Details
Please call for
pricing and availability. (734) 947-8100
