Eckold GL2 Portable Planishing Hammer

The Eckold GL2 planishing hammer is essential for the manual forming of sheet metal. This tool is designed to be used in body restoration, repair or anywhere metal has to be formed into a particular shape. This is the perfect tool to give the best possible surface finish on sheet metal parts already pre-formed. Fine laser weld seams can be planished fast and efficient using the GL2.

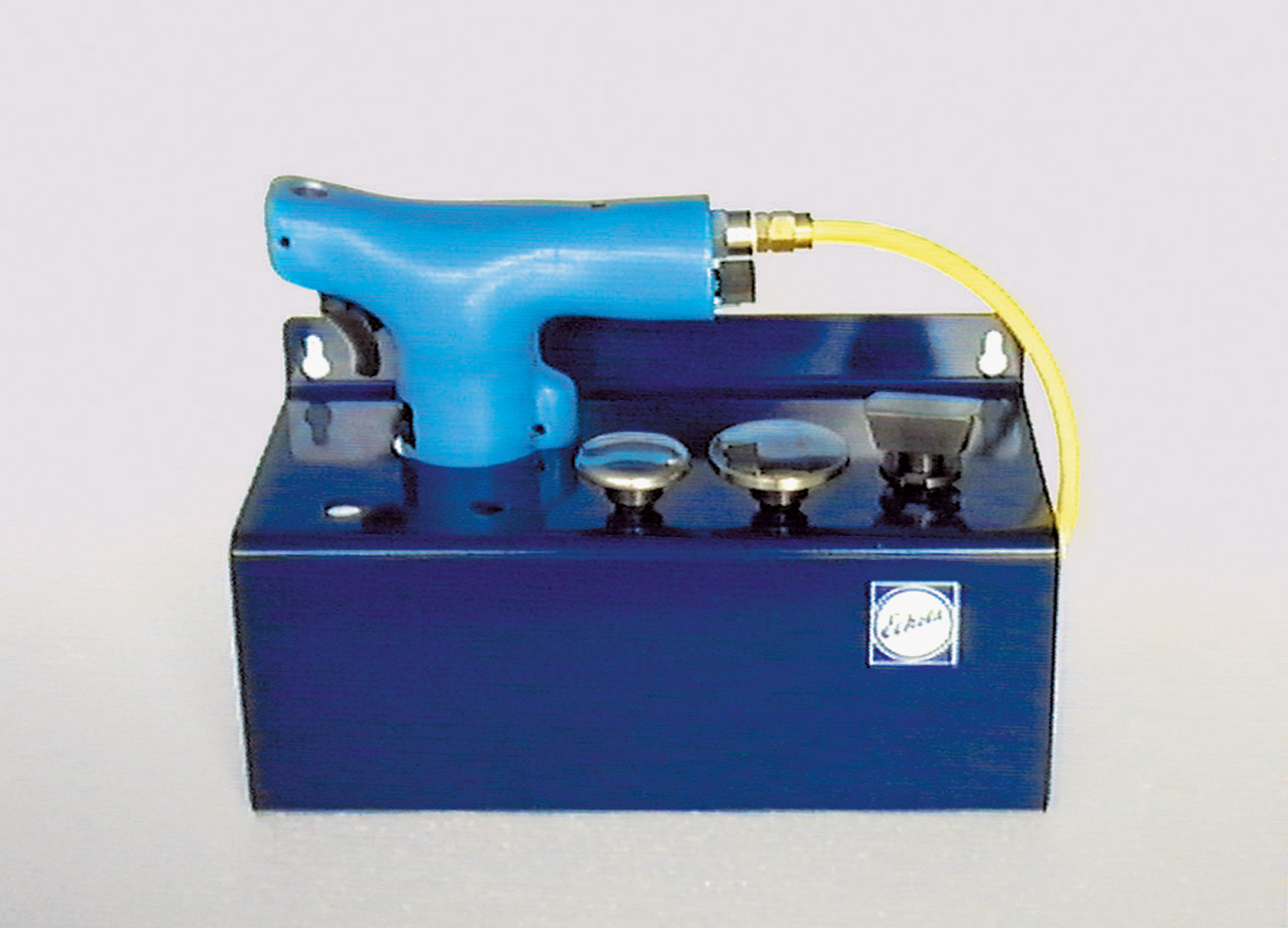

The Eckold GL2 planishing hammer is delivered complete with air hose, tool rack and inserts for planishing, stretching, and curving. The tool’s quick change capabilities enables different inserts to be changed quickly and easily. Desired shapes are gradually reached step-by-step, which is made possible by the sensitive pressure adjustment. In addition to standard inserts, Eckold offers optional synthetic inserts especially designed to reduce the risk of marking the surface of light metal panels. The perfect tool for a perfect finish.
  Eckold GL2

GL2


GL2 Max
GL2 Max
Eckold GL2 Eckold GL2 PDKIT
GL2PDKIT

GL2 GL2MAX GL2PDKIT Description Material Dimension
X X   GL2 Planishing Hammer
X X   Planishing Insert Steel 1.89" x R 19.685"
X X Curving Insert Steel 0.71" x 1.575" - R 19.685"
X X   Stretching Insert Steel 1.575" - R 2.362"
  X X Stretching Insert Steel 1.575" - R 1.969"
  X X Stretching Insert Steel 1.89" - R 2.756"
  X X Planishing Insert Synthetic 1.89" - R 19.685"
  X X Blank (Rectangular) Synthetic 0.71" x 1.575" - Flat
  X X Stretching Insert Synthetic 1.575" - R 2.362"
  X X Stretching Insert Synthetic 1.575" - R 1.969"
  X X Stretching Synthetic 1.89" - R 2.756"
  X X Blank (Round) (3pcs) Synthetic 1.89" - Flat
  X X Regular Shaft For Synthetic 1.575"
  X X Swivel Shaft For Synthetic 1.575"
  X X Molded Impact Resistant Tool Box
Please call for pricing and availability.  (734) 947-8100
Eckold MZ20 & MZ30 Mobileformer Flanging Tools


Forming operations in today’s Tank and Vessel manufacturing is still partly done by using heat and hammers on the areas to be formed. The Eckold Mobileformers eliminate this problem. They offer the user flexibility and portability for flanging, neckforming, straightening, and correcting. The mobile hydraulic drive considerably reduces the noise level, set-up time and provides clean forming without heat.

The Eckold Mobileformers are designed for material ranging from 0.0787” to 0.5906” steel thickness. Please contact us for more detailed information on your specific requirements.
Eckold MZ 20 Mobileformer

Please call for pricing and availability.  (734) 947-8100

Eckold MKF140/32  Mobile Kraftformer
The MKF140/32 Mobile Kraftformer is designed for limited straightening and correcting on large work pieces. It can work in a single or continuous stroke. The mobile C-Frame is operated by its 2-hand safety release, a suspension system and Teflon rollers to limit depth. A hydraulic power unit provides for high forming force with a sensitive pressure adjustment. Available with No-Mar shrinking and stretching tooling. Please call for tooling and applications.

  Eckold MKF140/32



Model # Throat Depth
Horizontal
Throat
Vertical
Strokes
Per Minute
Drive Aluminum
Capacity
Steel
Capacity
Stainless
Capacity
Shipping
Weight
MKF140/32 5 1/2" 5" Max 60 Hydraulic 0.240 0.157 0.118 290

Please call for pricing and availability.  (734) 947-8100



Disclaimer - Prices are subject to change without notice.
