Riveting Tools - Hand Squeezers |
|
|
|
KTC Hand Rivet Squeezers |
|
The KTC Heavy Duty hand rivet
squeezers are made of stainless steel to the highest
quality standards. Features include an adjustable set
holder, locking lever arm, comfort caps and easily
interchangeable yokes.
The hand rivet squeezers accept
rivet sets and dimple die sets with .187 diameter
shanks. The adjustable set holder allows the user to
accommodate various lengths of rivet sets and rivets.
|
|
| |
| Model # |
Description |
Reach |
Gap |
Price |
|
KTC152-1.5 |
Hand Rivet Squeezer |
1 1/2" |
1 1/4" |
125.00 |
|
KTC152-3 |
Hand Rivet Squeezer |
3" |
1 1/4" |
135.00 |
|
KTC152-4 |
Hand Rivet Squeezer |
4 |
1 1/4" |
155.00 |
|
KTC152-2 x 2 |
Hand Rivet Squeezer |
2" |
2" |
155.00 |
|
KTC152-Combo |
Hand Rivet Squeezer
w/ 1 1/2" & 3" Yokes |
1 1/2" & 3" |
1 1/4" |
165.00 |
|
KTC153 |
Yoke |
1 1/2" |
1 1/4" |
50.00 |
|
KTC154 |
Yoke |
3" |
1 1/4" |
50.00 |
|
KTC625 |
Yoke |
4" |
1 1/4" |
95.00 |
|
 |
|
|
|
|
KTC152 Deluxe |
|
| Model # |
Description |
Reach |
Price |
|
KTC152-3 |
Hand Rivet Squeezer |
3" |
275.00 |
|
KTC153 |
Yoke |
1 1/2" |
|
SM200-4703 |
AN470 Squeezer Set 3/32", 1/4" Body
Length |
|
SM200-4704 |
AN470 Squeezer Set 1/8", 1/4" Body
Length |
|
SM200-4705 |
AN470 Squeezer Set 5/32", 1/4" Body
Length |
|
SM200-4706 |
AN470 Sqyeezer Set 3/16", 1/4" Body
Length |
|
SM210 |
Flush Set 1/8" Length, 1/2" Body
Diameter (2 Pieces) |
|
SM211 |
Flush Set 1/4" Length, 1/2" Body
Diameter |
|
SM212 |
Flush Set 3/8" Length, 1/2" Body
Diameter |
|
KTC155 |
AN426 Dimple Die Set 3/32" |
|
KTC156 |
AN426 Dimple Die Set 1/8" |
|
KTC157 |
AN426 Dimple Die Set 5/32" |
|
KTC158 |
AN426 Dimple Die Set 3/16" |
|
|
Foam Insulated Molded Box |
|
 |
|
|
|
|
|
|

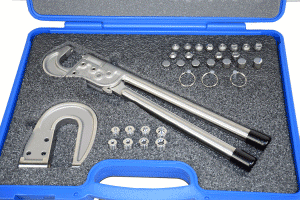

KTC152-Master Kit |
 |
|
This 32 piece kit comes with
semi-tubular, oval, AN470 & dimple die sets (male and
female) for sizes 3/32,1/8, 5/32 & 3/16. Also has
assorted flush sets. All Sets are .187 shank.
Custom Foam molded box with
1
½” hand rivet Squeezer and 3” yoke and quick release
pins. The Hand Squeezer has adjustable set
holder to easily adapt to multiple riveting
applications. Tool is made of Stainless steel and
quality craftsmanship. |
|
|
|
|
|

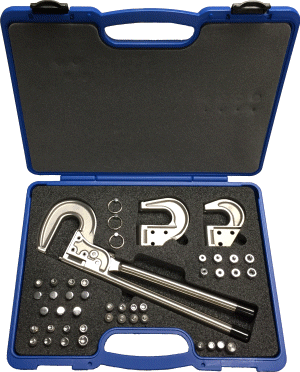

KTC152-Ultimate Kit |
 |
|
This 45 piece kit comes with
semi-tubular, oval, AN470, AN455, AN430, AN442 & dimple die sets (male and
female) for sizes 3/32,1/8, 5/32 & 3/16. Also has
assorted flush sets. All Sets are .187 shank.
Custom Foam molded box with
1
½” hand rivet Squeezer and 2" & 3” yokes and quick release
pins. The Hand Squeezer has adjustable set
holder to easily adapt to multiple riveting
applications. Tool is made of Stainless steel and
quality craftsmanship. |
|
|
|
|
|
|
KTC232 Bench Riveting & Dimpling Tool |
| |
The KTC232 Bench Riveter is made
from heavy-duty 1” x 2” steel tube. This allows the
riveter to maintain perfect alignment that will insure
top quality dimpling and riveting. Machined and jig
welded with a powder coat paint finish. Ideal for
riveting small parts, assemblies and spars.
Features:
22" deep x 4" Wide
Heat treated stainless steel driver
shafts (2 included). Includes one with .401" shank for
use with a rivet gun and one flat for use with a hammer
or mallet.
Both accept .187" shank dies and
rivet sets.
Bronze guide bushing.
Heavy-Duty aluminum channel base. |
|
 |
| |
|
|
|
|
| |
|
| |
